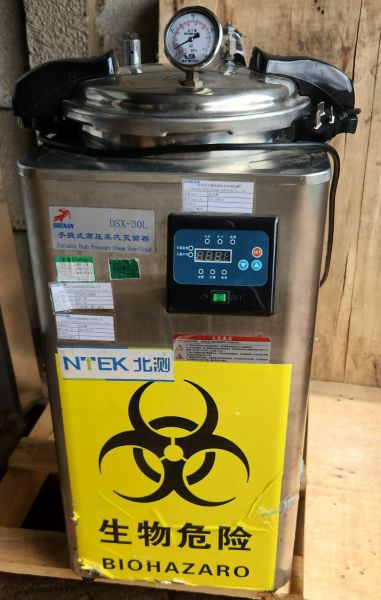

Portable High Pressure Steam Sterilizer (Autoclave)

Typical Specifications (DSX-30L class)
Capacity / Chamber
•
Chamber volume: 30 litres
•
Chamber type: Stainless steel
•
Loading: Top-loading (lid opens upward)
Sterilization performance
•
Sterilization temperature: 121°C (standard)
•
Some versions also support 134°C
•
Working pressure: about 0.12–0.22 MPa
•
Timer: usually 0–60 minutes (some versions 0–99 min)
Heating / Power
•
Power supply: 220–240V, 50Hz (South Africa compatible)
•
Power consumption: typically, ~2.0 kW to 3.0 kW
Safety
•
Pressure safety valve
•
Over-temperature protection
•
Lid safety lock (mechanical)

Frequency: 50Hz
Gross weight: 32kg
Net weight: 30Kg
Liner diameter*height: 260*420 mm
External package dimensions(L*W*H): 500*500*900 mm,
Instrument net size: 422*480*835mm
