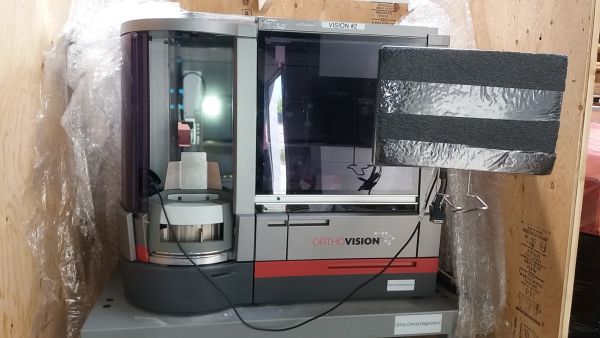

The Ortho Vision by Ortho Clinical Diagnostics

AS IS condition. The Ortho Vision (by Ortho Clinical Diagnostics) is a highly automated analyzer designed for transfusion medicine and immunohematology laboratories. It automates blood typing, antibody screening, and cross-matching to ensure patient safety before blood transfusions.

Key Specifications & Technology

• Methodology: Utilizes Column Agglutination Technology (CAT) using Ortho BioVue System cassettes.
• Testing Capabilities: Performs ABO/Rh typing, Antibody Screening/Identification, Cross-matching, and Phenotyping.
• Throughput: Processes up to 60 cassettes per hour (approximately 300 to 480 tests per hour depending on the test profile).

Core Features & Automation

• Full Automation: Automates pipetting, incubation, centrifugation, and digital reaction reading.
• Continuous Loading: Allows operators to load samples, reagents, and cassettes on the fly without interrupting ongoing runs.
• Dynamic Workflow: Features a smart scheduler that prioritizes STAT (emergency) samples instantly.
• High-Resolution Imaging: Uses a digital camera to capture reaction grades, reducing human error in interpretation.

Physical Dimensions

• Width: 42.1 inches (107 cm)
• Depth: 31.9 inches (81 cm)
• Height: 35.0 inches (89 cm)
• Weight: 419 lbs (190 kg)
